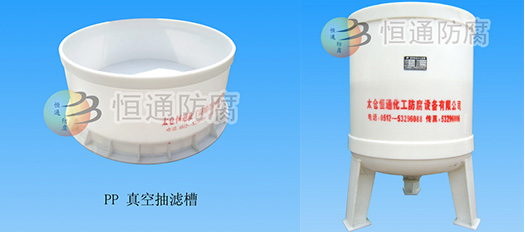

Polypropylene vacuum filter tank (suction cylinder)

Our PP vacuum filter, filter-tank, filter-drum are widely applied in chemical, medical, food, oil and grease, dyeing and printing, metallurgy and environmental protection industry for material filtration and solid-liquid separation.

It has 2 types: ellipsoidal head type and flat base type. Our product has advantages of strong corrosion resistance, high height, light weight, beautiful appearance and etc.

Specification and properties

1.Specification: 0.1m³～5m³ (customized production for special specification)

2.Negative pressure: ≤－0.098MPa

3.Operation temperature: PP: －10℃～120℃

Specification of vacuum suction filtration tank, filter-tank

I type tablet Unit: mm

Nominal volume M³	Filtering area M²	Ф	Ф1	H	H1	δ	δ1	a
0.1	0.12	500	10	400	890	15	18	DN25
0.2	0.19	630	10	600	1110	16	20	DN25
0.3	0.38	700	12	700	1230	14	20	DN32
0.4	0.5	800	12	700	1250	15	22	DN32
0.5	0.78	1000	14	600	1180	15	25	DN40
0.6	0.78	1000	14	700	1280	15	25	DN40
0.8	1.13	1200	15	700	1330	16	28	DN50
1	1.13	1200	15	900	1530	16	28	DN50
1.5	1.53	1400	16	850	1530	18	30	DN65
2	2	1600	16	850	1580	18	30	DN65

II type tablet Unit: mm

Nominal volume M³	Filtering area M²	Ф	Ф1	H	H1	δ	δ1	a
0.1	0.12	500	10	400	600	15	18	DN25
0.2	0.19	630	10	500	700	16	20	DN25
0.3	0.38	700	12	600	800	14	20	DN32
0.4	0.5	800	12	600	800	15	22	DN32
0.5	0.78	1000	14	450	650	15	25	DN40
0.6	0.78	1000	14	600	800	15	25	DN40
0.8	1.13	1200	15	500	700	16	28	DN50
1	1.13	1200	15	700	900	16	28	DN50
1.5	1.53	1400	16	800	1000	18	30	DN65
2	2	1600	16	800	1000	18	30	DN65
2.5	2.54	1800	18	800	1000	20	30	DN80
3	3.14	2000	18	800	1000	22	30	DN80
4	3.8	2200	20	900	1100	25	30	DN100
