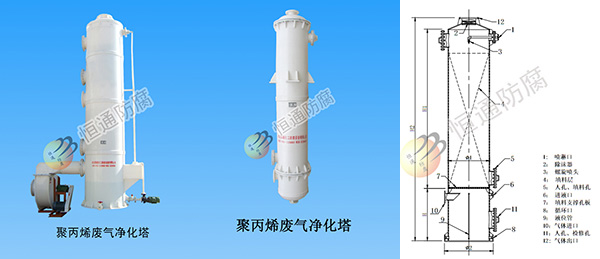

Polypropylene waste gas purifying column

All tower equipments taking PP as main material are padding spray tower. Padding materials is PP material Pall ring or hollow sphere. It has excellent absorption and purification effect.
Structural features:
PP absorption tower has 2 kinds of structure: vertical and horizontal type.
Advantages:
High purification efficiency, excellent corrosion resistance, light weight, convenient for installation and maintenance, high specific strength, beautiful appearance, small space cover and large treatment capacity of exhaust gas
Scope of application:
For absorption, washing and purification treatment of exhaust gas in chemical, petrochemical, medical, food, oil and grease, dyeing and printing, metallurgy, environmental protection and compound fertilizer industries
Technical speciality:
1.pressure loss: <390-780Pa
2.applicable temperature: PP material -10℃-120℃
3. specification and treatment capacity of vertical tower: Φ300-Φ3000mm, 1200m3/h-30000m3/h
4.Specification of horizontal tower is designed on customer requirement

Specification table of purification tower of polypropylene exhaust tower

PTL-II type Unit: mm

Model	Handling capacity of air M³/h	Ф1	Ф2	H	H1	H2	Purifying rate %	Recommend pump
PTL-II-500	1200	500	700	1200	2000	3500	90	25FP-8
PTL-II-600	2000	600	800	1200	2000	3500	90	25FP-8
PTL-II-700	3000	700	900	1300	2400	4000	90	32FP-11
PTL-II-800	4000	800	1000	1300	2350	4000	90	32FP-11
PTL-II-1000	5000	1000	1200	1400	3200	5000	90	40FP-18
PTL-II-1200	6000	1200	1400	1400	3150	5000	90	40FP-18
PTL-II-1400	8000	1400	1600	1400	3600	5500	90	50FP-22
PTL-II-1600	10000	1600	1800	1400	3550	5500	90	50FP-22
PTL-II-1800	15000	1800	2000	1500	3900	6000	90	50FP-22
PTL-II-2000	20000	2000	2200	1500	3850	6000	90	65FP-26
PTL-II-2200	25000	2200	2400	1500	4300	6500	90	65FP-26
PTL-II-2500	30000	2500	2700	1500	4250	6500	90	65FP-26
