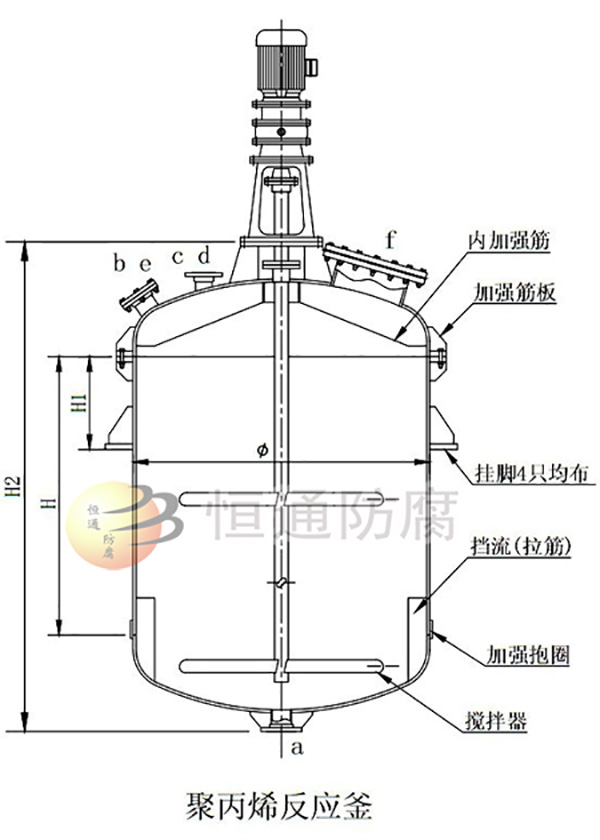

Uses of pipe: a:discharge hole; b:feed inlet; c:inlet ready; d:vent nozzle; e:sight glass; f:manhole

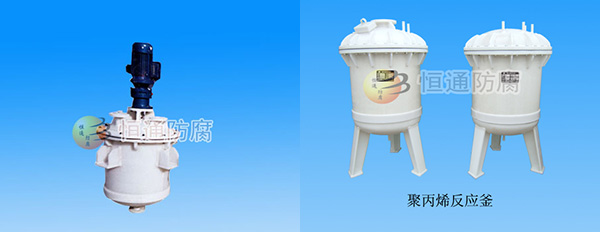

Our polypropylene reaction still is a kind of reasonable reaction still with micro positive pressure. It has advantages of light weight, convenient for installation and strong corrosion resistance.

Stirrer: paddle mixer, gate paddle agitator, anchor paddle mixer

Performance feature

Operation pressure: micor possitive pressure

Operation temperature: -10℃～90℃

Strong corrosion resistance, convenient for operation, long serve life, light weight

Specification table for polypropylene stirred tank

Unit: mm

Nominal volume M³	External dimension				Specification of interface flange(DN)
Nominal volume M³	Ф	H	H1	H2	a	b	c	d	e	f
0.1	500	600	200	1250	50	40	32	25	80	/
0.2	630	700	250	1350	50	40	32	25	80	/
0.3	700	800	300	1480	65	50	40	32	80	/
0.4	800	800	300	1500	65	50	40	32	80	/
0.5	900	800	300	1520	65	50	40	32	80	/
0.6	1000	800	300	1580	80	65	50	40	80	/
0.8	1000	1000	350	1830	80	65	50	40	80	400
1	1200	900	350	1830	80	65	50	40	80	400
1.5	1400	1000	350	1980	80	65	50	40	80	400
2	1500	900	350	1950	100	80	65	50	100	400
2.5	1600	1250	400	2320	100	80	65	50	100	400
3	1600	1500	500	2570	100	80	80	50	100	400
4	1800	1600	500	2770	100	80	80	50	100	500
5	2000	1600	500	2870	125	100	100	80	125	500
6	2200	1600	500	2910	125	100	100	80	125	500
8	2300	2000	650	3370	150	125	100	80	125	630
10	2500	2000	650	3430	150	125	100	80	125	630
