Modified graphite PP falling film absorber

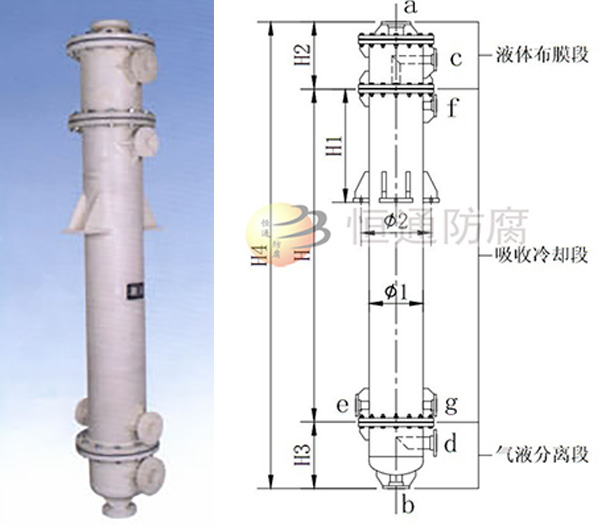

Uses of pipe orifice: a:gas feed; b:product outlet;c:absorption liquid inlet; d:gas outlet;e:cooling water inlet

f:cooling water outlet; g:cleaning drain outlet

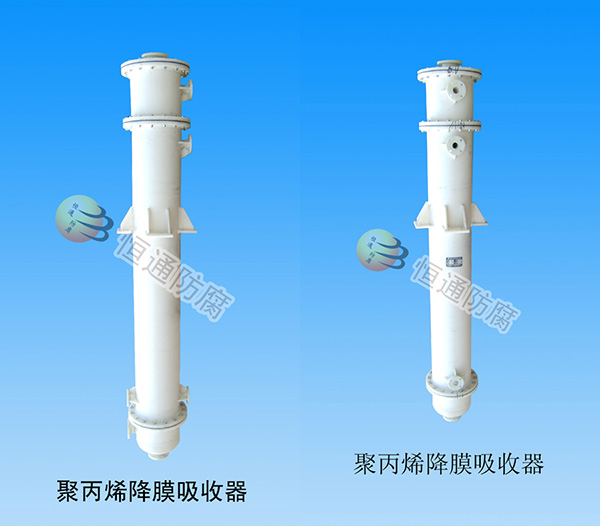

Graphite modified polypropylene falling film absorber is new type absorber developed recently.

Performance feature

Small volume and light weight: light weight material with specific gravity of 0.91-0.92; convenient for transportation, installation and maintenance;

High temperature resistance: melting point: 164～174℃;

Non-toxic and no scale formation, no pollution and medium;

Application pressure: shell pass and tube pass≤0.3MPa;

Vacuum degree: : shell pass and tube pass≤－0.1MPa;

Scope of application

For absorption of corrosive gas in chemical, petroleum, medical, food, oil and grease, dyeing and printing, metallurgy, environmental protection and light industry

Specification and model of falling film absorber

Unit: mm

Absorption area㎡	Drum	Hangers	External dimension					Absorption tube Ф20×1.7	Gas inlet	Product outlet	Inlet of absorption liquid	Outlet of tail gas	Inlet of cooling water	Outlet of cooling water	Cleaning discharge outlet
	Ф1	Ф2	External dimension					Absorption tube Ф20×1.7	Gas inlet	Product outlet	Inlet of absorption liquid	Outlet of tail gas	Inlet of cooling water	Outlet of cooling water	Cleaning discharge outlet
	Ф1	Ф2	H	H1	H2	H3	H4	Quantity/piece	a	b	c	d	e	f	g
5	310	470	1350	450	480	450	2280	66	80	65	50	65	40	40	40
8	310	470	2100	700	480	450	3030	66
10	310	470	2550	850	480	450	3480	66
10	405	565	1700	600	500	500	2700	104	100	80	50	80	50	50	50
15	405	565	2450	800	500	500	3450	104
20	405	565	2550	850	500	500	3550	132
25	405	565	3150	1100	500	500	4150	132
30	500	720	2600	900	550	520	3670	192	100	80	65	80	50	50	50
35	500	720	3050	1000	550	520	4120	192
40	500	720	2950	1000	550	520	4020	226
45	500	720	3300	1100	550	520	4370	226
50	500	720	3700	1300	550	520	4770	226	125	100	65	100	50	50	50
55	630	850	2800	900	550	550	3900	328	125	100	65	100	50	50	50
60	630	850	3050	1000	550	600	4200	328	150	125	65	125	65	65	65
65	630	850	3300	1100	550	600	4450	328
70	630	850	3550	1200	550	600	4700	328
75	630	850	3800	1300	550	600	4950	328
80	710	930	3050	1000	550	600	4200	438
85	710	930	3220	1100	550	600	4370	438
90	710	930	3400	1100	550	600	4550	438
95	710	930	3600	1200	550	600	4750	438
100	800	1040	2850	1000	600	650	4100	588	200	150	80	150	80	80	80
120	800	1040	3370	1100	600	650	4620	588	200	150	80	150	80	80	80
150	1000	1300	3250	1100	650	700	4600	770	250	150	80	150	80	80	80
180	1000	1300	3850	1300	650	700	5200	770	250	150	80	150	80	80	80
200	1000	1300	4260	1400	700	800	5760	770	300	200	100	200	100	100	100
